1. Setup

1.1. Overview

To get your dome fully up and running with the Caterpillar, you will need to perform a few tasks:

• Connect all the elements to the Caterpillar boards: external drivers, motor, encoder, etc. Details in the following section
• Download the Caterpillar ASCOM driver and software
• Perform an initial setup with the "Initial motor configuration and setup" tool, as indicated below.
• Use your ASCOM or INDILib driver to calibrate the rotation (full calibration), and optionally the shutter.
• You are ready to go!

1.2. Example installations

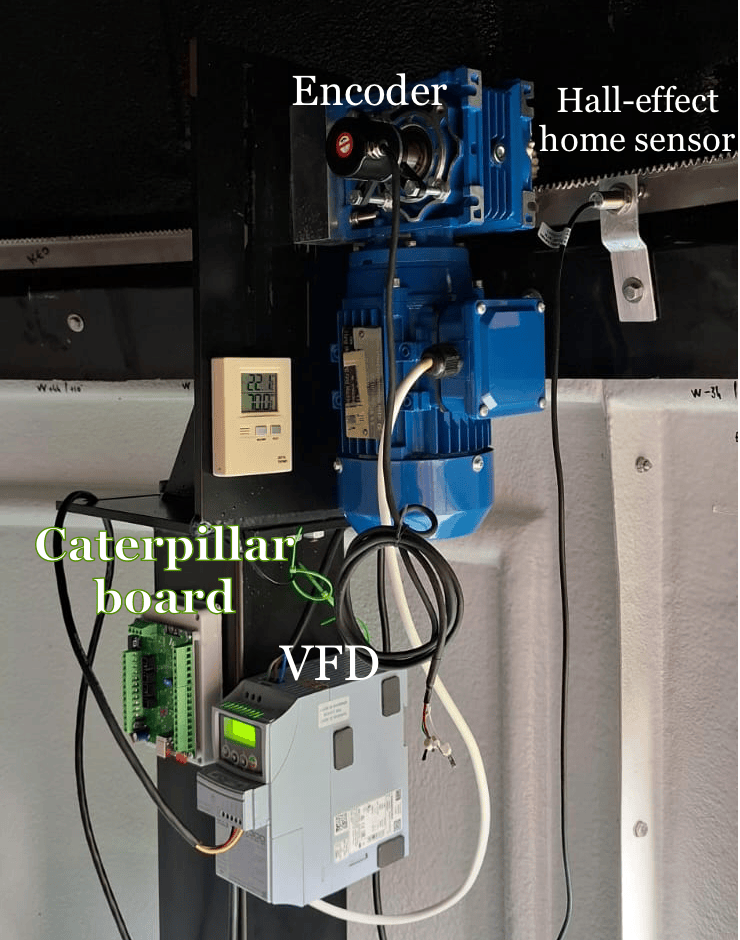

Have got a Caterpillar? We'd really appreciate it if you sent us a picture of your setup so we can feature it here to assist other users.

2. Hardware

2.1. Hardware overview

The Caterpillar Dome FC is the "full" model, with separate boards to control the rotation and the shutter. For a standard dome, the system is comprised of two elements:

• The rotation element is made up of the Caterpillar board, connected to a motor (any of 3-phase, DC, or stepper), a rotary encoder, and a home switch.
• The shutter element depends on whether it has one or two parts.

• The opening always has a motor—any type, wired and configured just like the rotation motor—plus two limit switches, with an optional (recommended) encoder.
• If the shutter also has flaps, they are driven by a DC motor through the shutter board's dedicated flap connector, always with two more limit switches and no encoder option. See Shutter hardware for details.

Both boards communicate via an internal Wi-Fi link. The power input accepts from 12 up to 51 V DC; the board provides a regulated +5 V output for powering sensors. If the shutter board is installed in the rotating section of the dome, provisions must be made for it to be powered independently—a battery (charging at the park position) or conductor rails (busbar system) are two common options.

What you’ll need

There are sections for each element below further ahead in the document. For now, this table gives an overview of the main elements required depending on your setup.

The following table refers to other elements dependent on the setup. They also have their own sections further into the document.

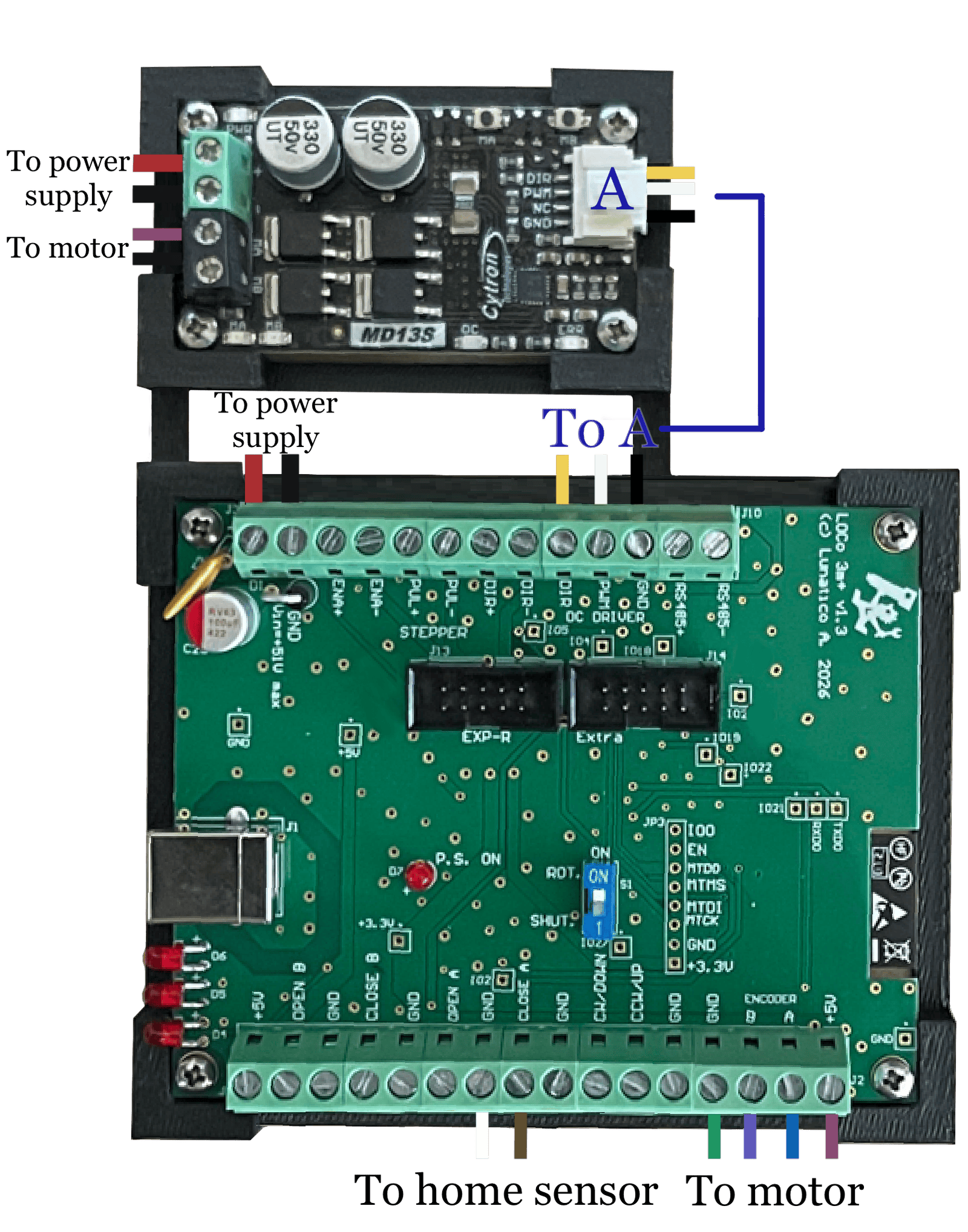

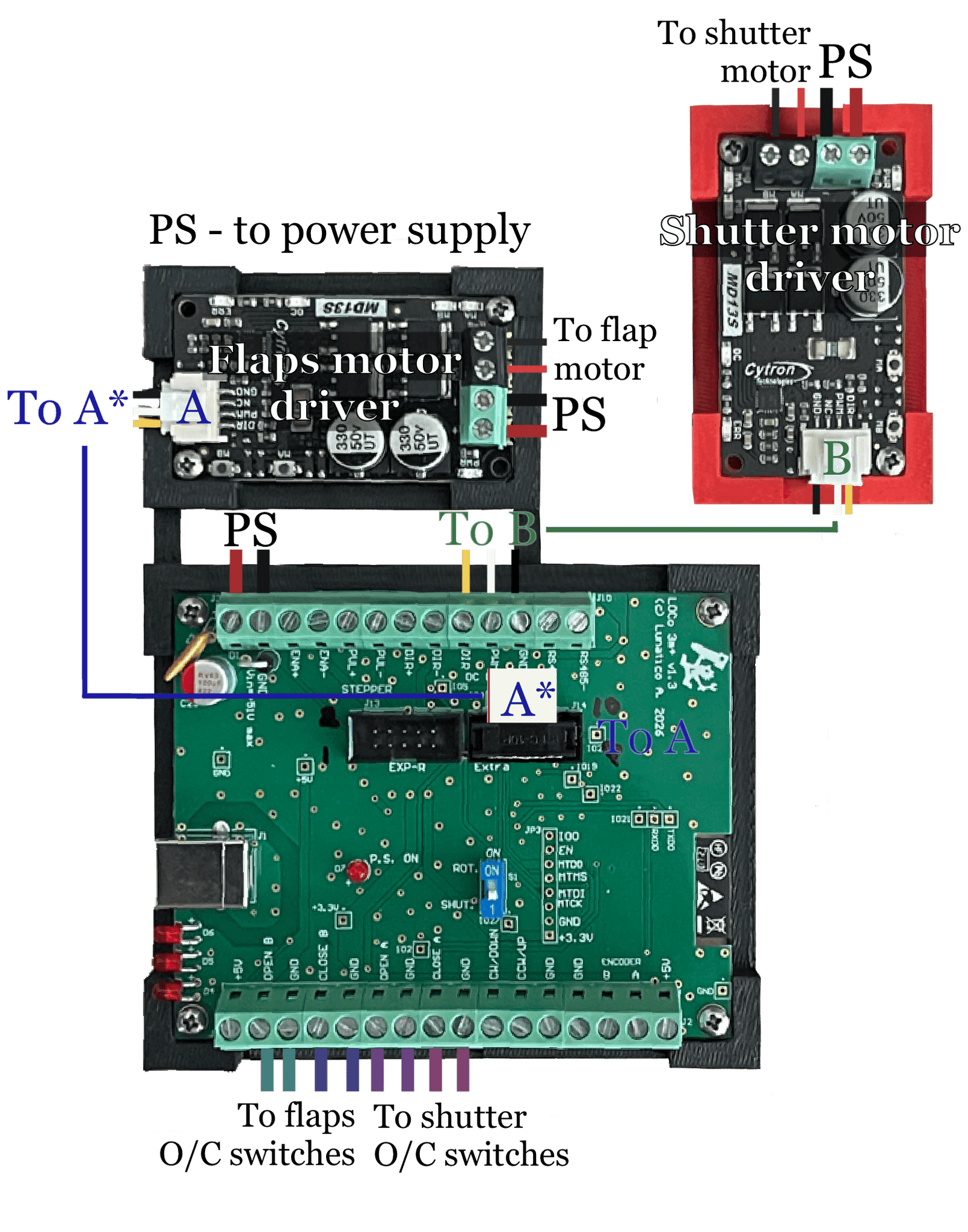

Example board connections

2.2. Home sensor

The rotation unit needs a home sensor. Both a mechanical or a hall-effect sensor (usually preferred) can be used. They are wired to the same connector on the board, which provides +5 V required for the hall-effect one.

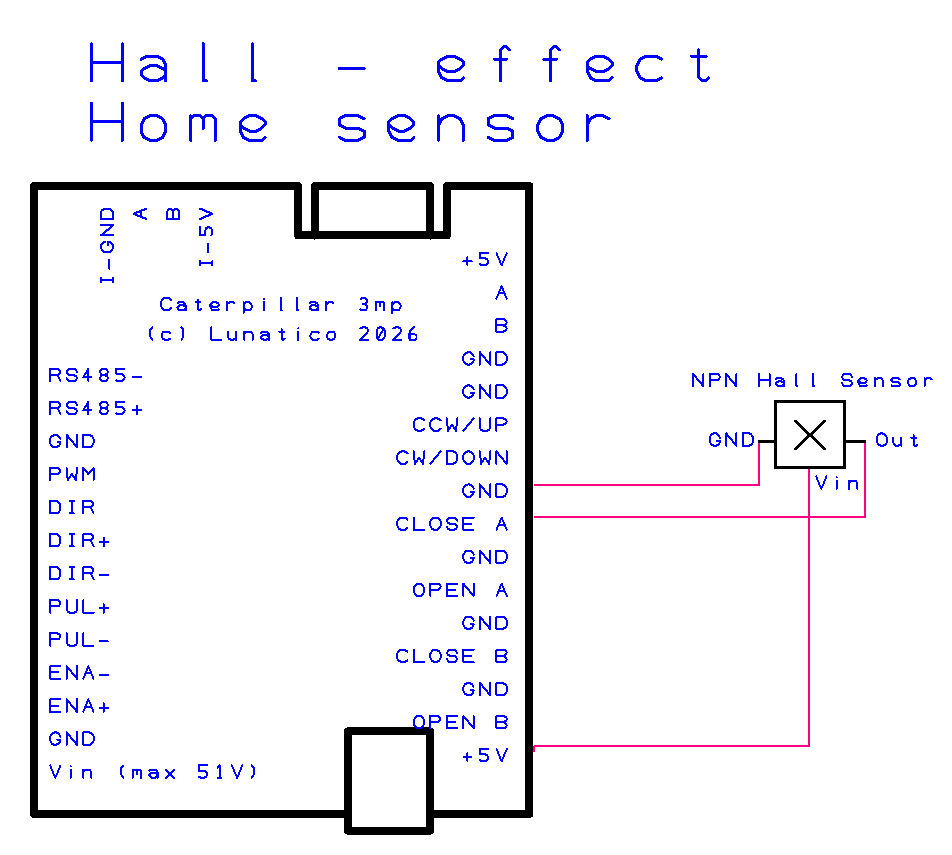

Hall-effect sensor (preferred)

Popular NPN hall-effect sensors include an LED that will light when the sensor is active, which is very convenient to test the system during installation.

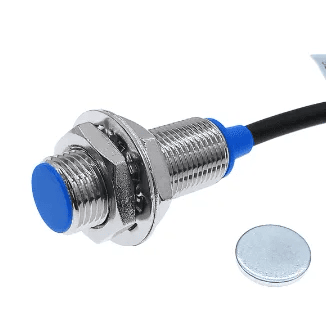

Tested Hall-effect sensors

One sensor we have tested to work with the +5 V from the Caterpillar board is the NJK 5002C.

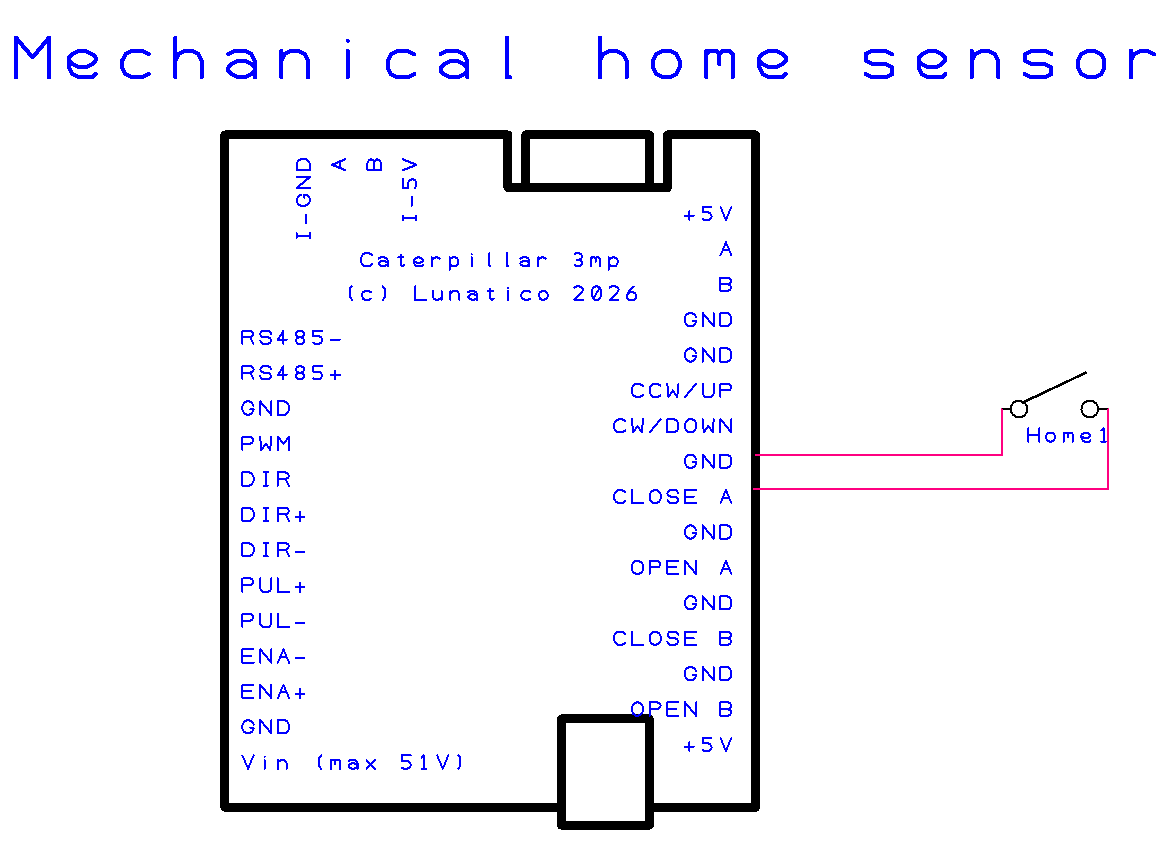

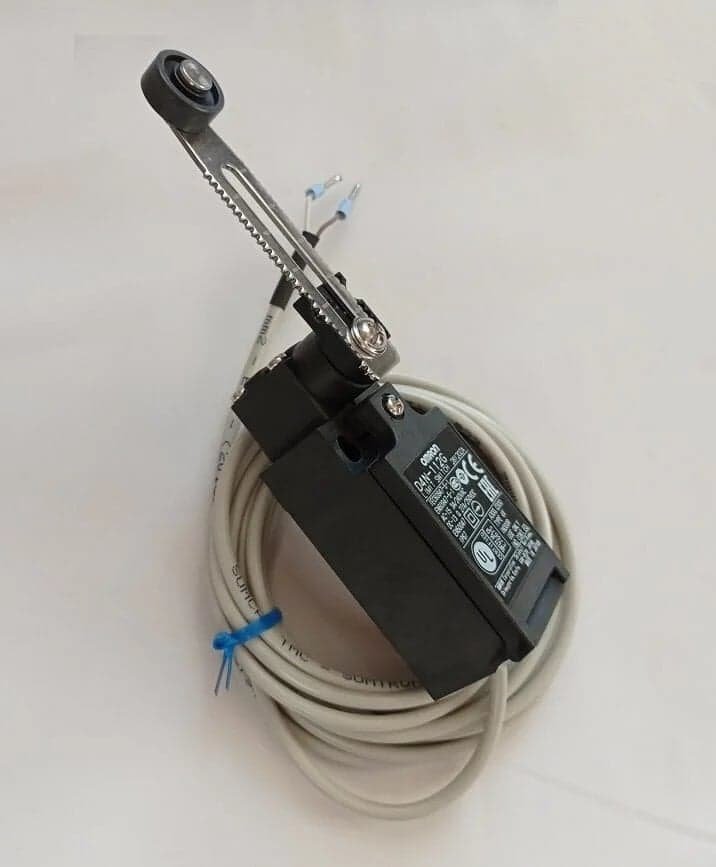

Mechanical limit switch

A mechanical push-button or lever switch can also be used. For switches with two closed positions (i.e. the lever can be pressed from either side), precautions must be taken so it is only triggered at one point per revolution. A good approach is placing the sensor horizontally, so the dome lowers the switch when reaching the home position, rather than pushing it sideways—this way only one consistent trigger point is possible.

2.3. Encoder

Rotation of the dome is measured by a rotary encoder, and the home position is confirmed by the home sensor. The combination of these allows for very precise positioning of the dome.

The encoder is required, except for stepper motors; without it, the system cannot track dome position accurately. If the encoder does not detect motion when the dome is running, the system will stop and issue a warning.

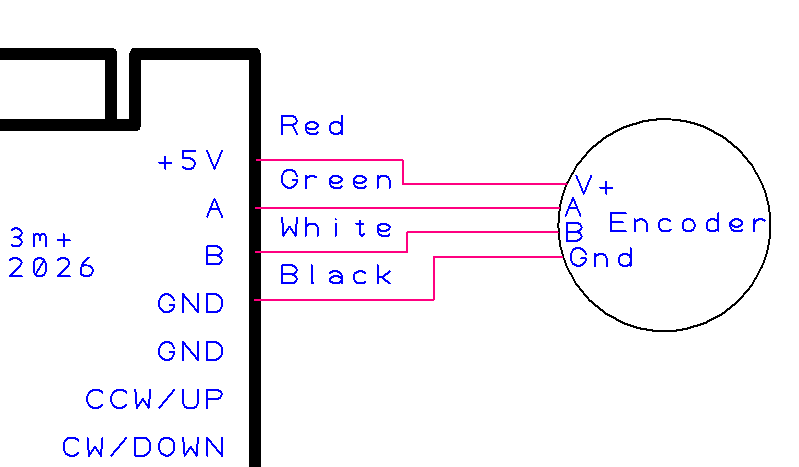

The encoder can be coupled either to the motor axle—downstream of any reduction gearing—or directly to the dome rack, using a dedicated coupling. A non-friction coupling is preferable in either case, to avoid slippage.

2.4. Stepper motor—external driver

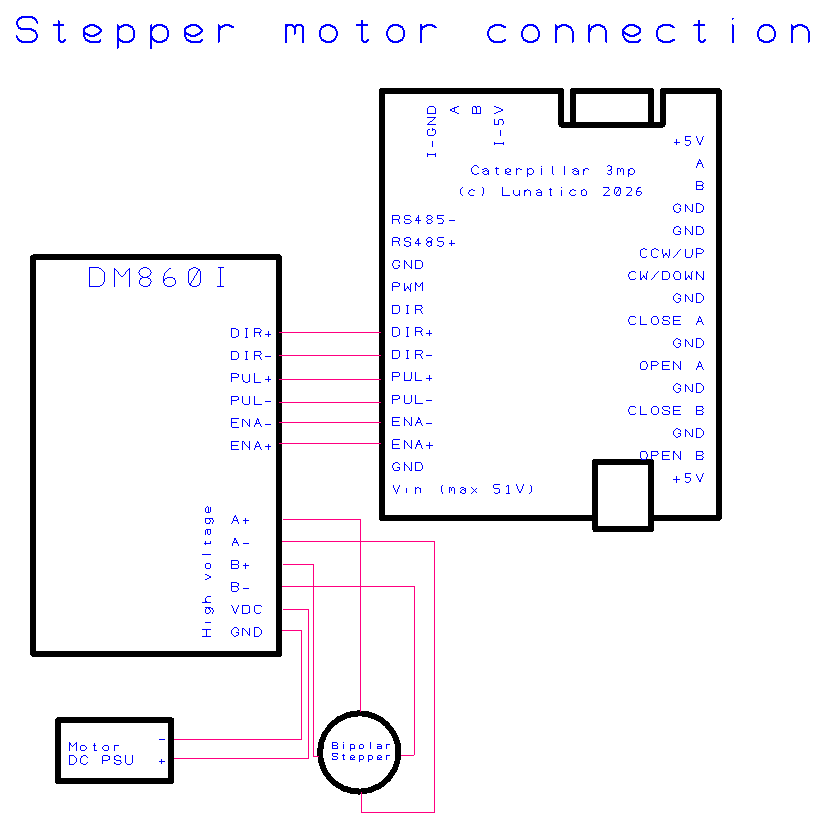

For stepper motors, the Caterpillar board does not drive the motor directly. Instead, it outputs 5 V control signals to an external stepper driver (such as a DM860I or TB6600), which handles the high-current motor supply. Many stepper drivers accept opto-isolated ENA+/ENA-, PUL+/PUL-, and DIR+/DIR- inputs referenced to 5V as supplied by the Caterpillar.

Tested drivers

• DM860I—up to 7.2 A, suitable for larger NEMA 34 motors
• TB6600—up to 4.5 A, common choice for NEMA 23 motors

2.5. DC motor—external driver

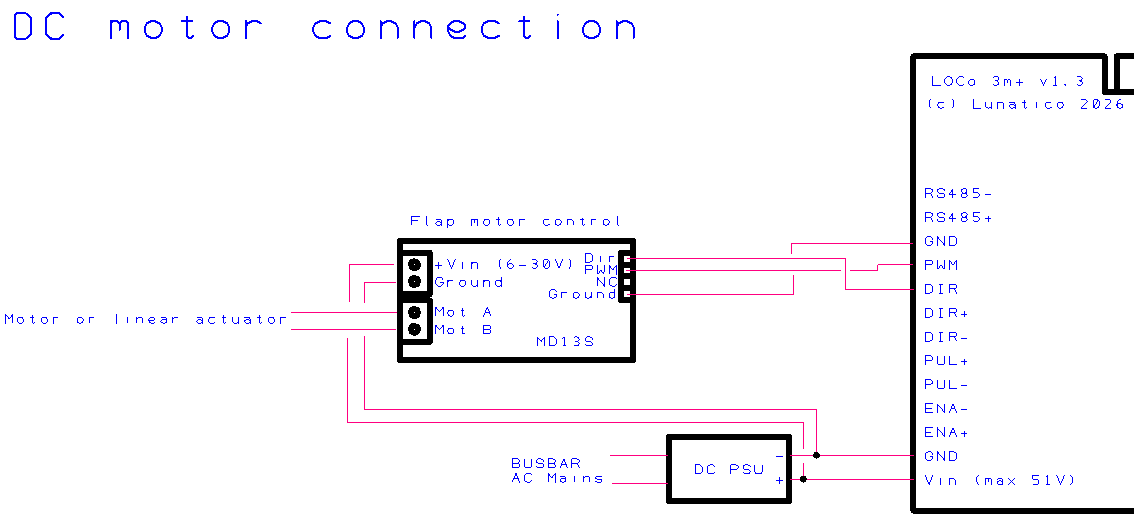

For DC motors, the Caterpillar board does not drive the motor directly either. Instead, it outputs a PWM speed signal and a direction (DIR) signal to an external DC motor driver (H-bridge), which handles the higher current the motor needs. Any DC driver that accepts PWM + DIR control at 3.3 V logic is compatible.

Tested driver

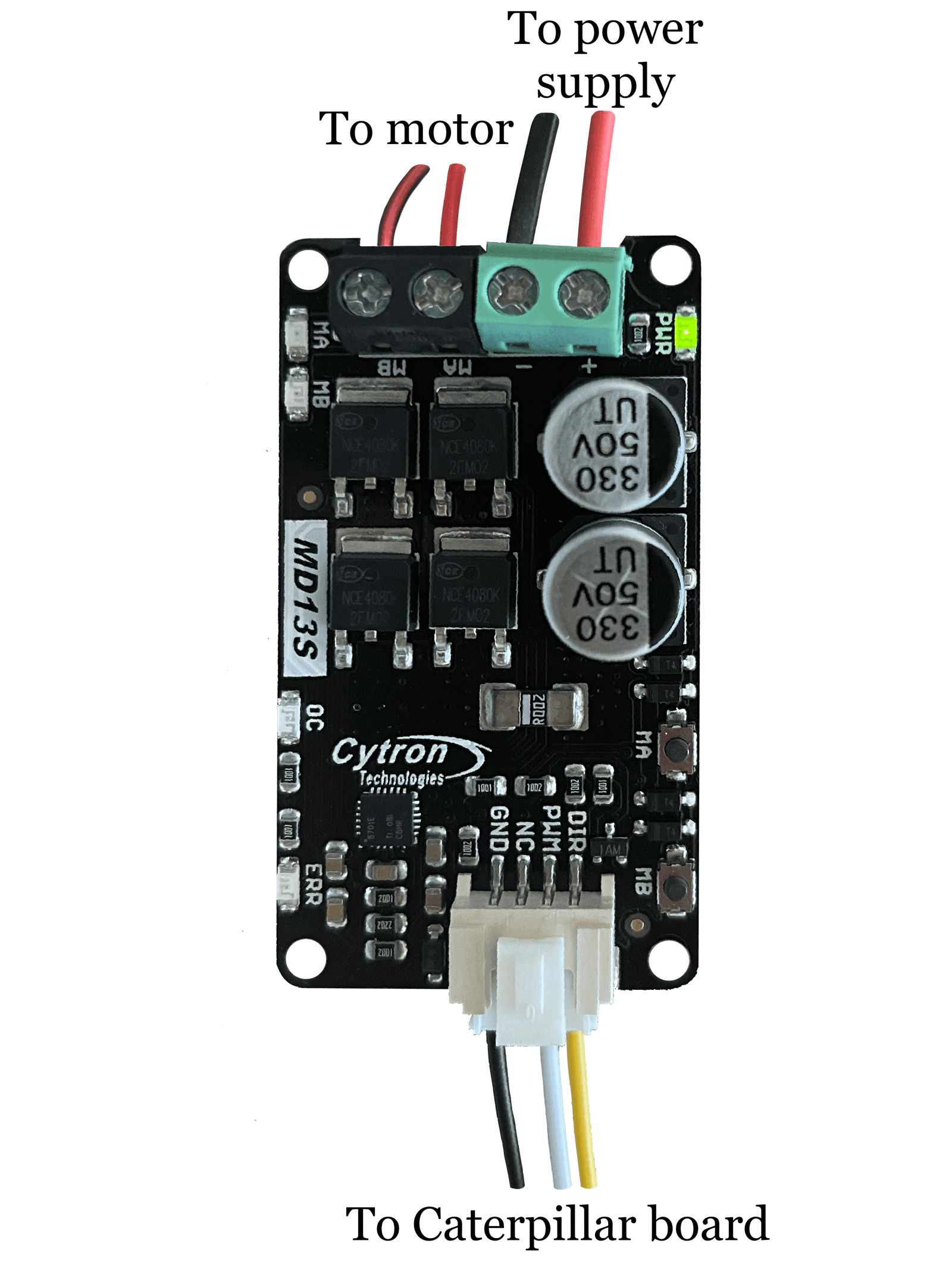

• Cytron MD13S—13 A continuous (30 A peak for up to 10 s), 6–30 V motor supply, PWM (up to 20 kHz) + DIR control, 3.3 V/5 V logic; built-in overcurrent, undervoltage, and thermal protection.

2.6. Variable-frequency drive (VFD)

For 3-phase motors, the Caterpillar controls a variable-frequency drive (VFD) through its digital inputs (DIx), driven by the relays on our relay expansion board—a convenient way to get run/stop and direction control without any serial link. Any VFD that lets you assign run/stop and forward/reverse commands to digital inputs can be used this way; the parameter names and numbers below are given for the WEG CFW300 as a concrete example—consult your VFD's manual for the equivalent digital-input parameters if you are using a different model.

For the VFD to read its digital inputs the way the Caterpillar's relays expect, a few parameters have to be adjusted. On a CFW300, these are:

After this configuration, the VFD will obey the run/stop and direction relays wired from the expansion board's outputs to its digital inputs, and will also be capable of manual operation with the flip of a switch.

2.7. Relay expansion board

For motors or drives that are normally operated through simple on/off switches or contactors, the Caterpillar can automate that control using our relay expansion board. Rather than wiring to the motor or drive electronics directly, the board's relay outputs connect to whatever would otherwise be flipped by hand—a contactor coil, a VFD's digital inputs (see above), or any other low current switch-operated control point.

This makes it a convenient, driver-agnostic option: as long as a motor or drive can be commanded through dry-contact switch closures, it can be automated this way, without needing a dedicated speed/direction interface like PWM+DIR or a serial connection.

2.8. Shutter hardware

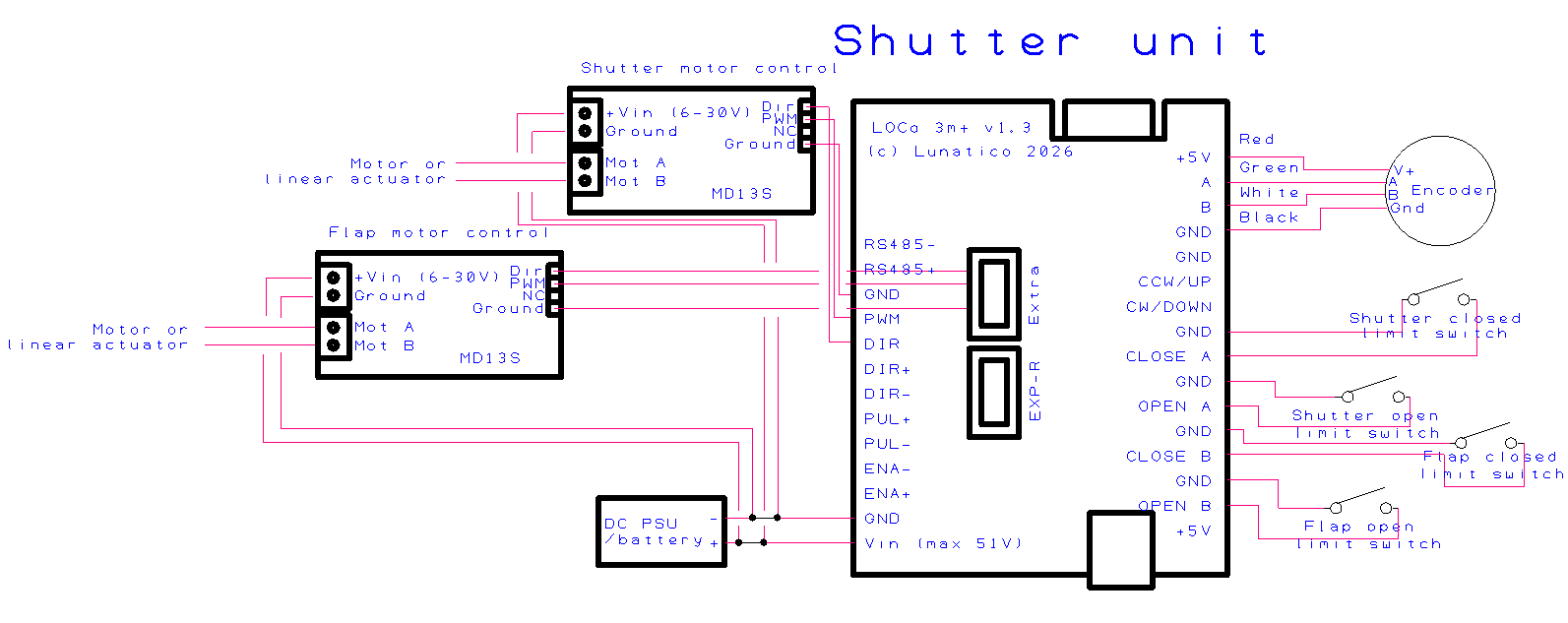

The shutter board controls up to two independent elements: the opening and, if fitted, the flaps (AKA lower shutters). Each element has its own motor/driver and its own pair of limit switches.

Opening

The opening motor can be any type—DC, stepper, 3-phase (via VFD), or relay/contactor—wired and configured exactly like the rotation motor; see the DC motor, Stepper motor, VFD, and relay expansion board sections for wiring details.

Two limit switches (open and close), normally open, are required. There is no home sensor for the opening—the limit switches themselves define the open and close positions—and a rotary encoder is optional, though recommended as an extra safety check (see Encoder).

Flaps (lower shutters)

If your shutter has two elements—a main opening and flaps (AKA lower shutters)—the flaps are always driven by a DC motor or a linear actuator (or 2) through a dedicated connector on the shutter board, separate from the opening's motor connector. The flap driver has no encoder input; instead, two limit switches (open and close) are always required to track its position.

Note that even if the flaps use 2 linear actuators, these can be controlled by the same driver; alternatively 2 drivers can be wired in parallel if the power requirements demand it.

3. Software and configuration

3.1. Software overview

The Caterpillar can be controlled from any operating system, but it's important to note that the first first configuration has to be done with the Initial motor configuration and settings application, which runs on Windows. The Caterpillar's USB Windows drivers can be found here: CP210x_Universal_Windows_Driver.zip.

The Caterpillar's software package includes:

• The Initial motor configuration and settings, which as mentioned, is an application used usually just once, to set everything up according to your specific dome characteristics
• The ASCOM dome driver and ASCOM safety monitor driver

There is an INDI driver available as well. Refer to its section for more information.

3.2. Initial motor configuration and settings

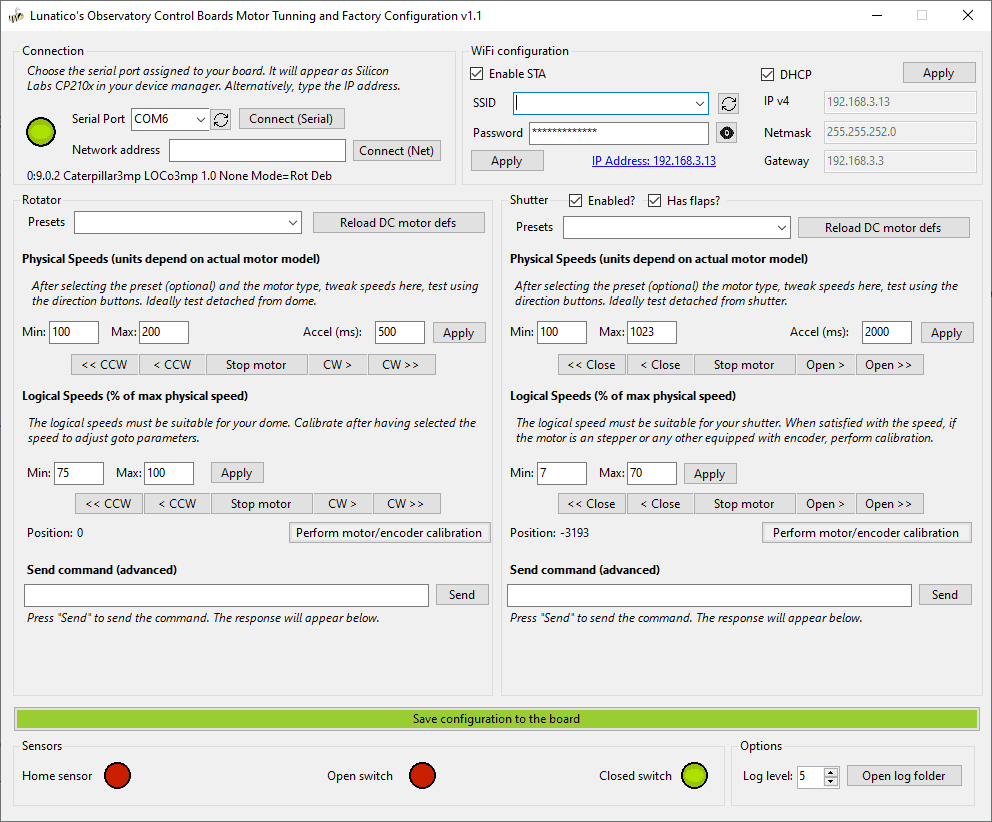

The Initial motor configuration and settings application is a small Windows application used to fine-tune the Caterpillar's settings. You will use it to:

• Select the correct motor preset for your drive system
• Set physical and logical speed parameters
• Configure the WiFi so the board can be reached over your observatory network
• Run motor and encoder calibration
• Save all settings to the board's internal flash storage

Once your observatory is up and running, you will rarely need this tool again; day-to-day operation goes through your ASCOM or INDI driver and automation software.

The window is split into two mirrored halves, Rotator (left) and Shutter (right). The shutter half only becomes active once you check its Enabled? box.

Both halves share the same layout:

• A preset dropdown and a "Reload … motor defs" button. See Selecting a motor preset.

• Physical Speeds and Logical Speeds, each with jog buttons (<< < Stop motor > >>) to test movement directly from the app. See Configuring speeds.
• A live Position readout and a Perform motor/encoder calibration button. See Motor and encoder calibration.
• A Send command (advanced) box to send raw commands straight to the board. This is only needed for low-level diagnostics or support requests.

At the bottom, Sensors shows live indicators for the home sensor and, on the shutter side, the open/closed limit switches. This is handy for checking wiring without leaving the app. The green Save configuration to the board bar writes everything to flash (see Saving settings to the board). Options lets you raise the log level and open the log folder if you need to troubleshoot or file a support request.

Step 1: connecting

Connecting via USB

Connect your computer to the board with a USB cable, and turn the Caterpillar on. Windows will detect a new device and may install the drivers automatically. If it does not, install the CP210x driver manually: CP210x_Universal_Windows_Driver.zip .

In order to find out which COM port has been assigned to your Caterpillar, use the Windows Device Manager. This number will always be the same for your device, and will be required to configure the connection.

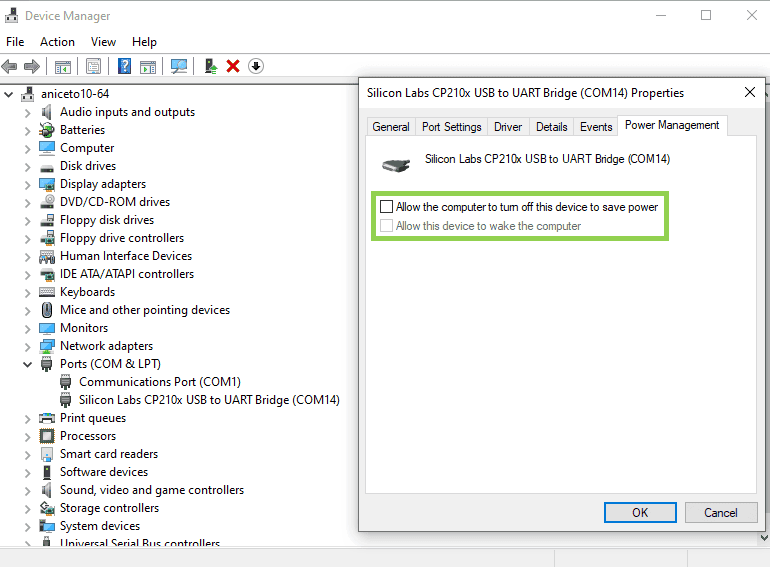

You should also disable the power saving feature of the USB port: in Device Manager, find the CP210x device under Ports (COM & LPT), open its Properties → Power Management, and uncheck "Allow the computer to turn off this device to save power".

Open Initial motor configuration and settings. The Port dropdown will list all available serial ports. If the board does not appear, click Reload Ports. Select the correct port and click Connect.

The status bar will show the board's firmware version string once connected (e.g. Caterpillar3mp LOCo3mp 1.2.0 None Mode=Rot|Shut).

Configuring board WiFi

You can use Initial motor configuration and settings to configure WiFi so the board can be reached over your observatory network. To do so, follow these steps:

1. Connect via USB first, as WiFi configuration requires an existing connection.
2. In the WiFi section, enable Station mode by checking the STA checkbox.
3. Click Scan to discover nearby networks, or type your SSID directly.
4. Enter the WiFi password.
5. Choose DHCP (default), or enter a static IP, subnet mask, and gateway if you prefer a fixed address.
6. Click Apply WiFi. The board will apply the settings and disconnect—this is normal. If connected via USB, Initial motor configuration and settings will attempt to reconnect automatically.

After reconnecting, the current IP address is shown in the WiFi section; note it down, as you will need it to connect without USB in future sessions.

Connecting via WiFi

Once the board has been configured with your WiFi credentials (see Configuring board WiFi), you can connect to it over the network instead of USB.

In the Network address field, enter the board's IP address—you can find this in your router's DHCP lease table, or from the address shown in Initial motor configuration and settings after a USB connection. The default port is 10000, so entering just the IP address is enough; to use a different port, enter 192.168.x.x:port. Press Enter or click Connect.

Step 2: selecting a motor preset

Motor presets load a complete set of factory default parameters tuned for a specific motor and drive combination. This is the first thing you should do after connecting to a freshly installed board.

The rotator and shutter each have their own preset dropdown. Select the preset that matches your motor.

The "no encoder" presets are only offered in the Shutter preset dropdown—on the rotator, an encoder is always required except with the Stepper preset, which tracks position by step count instead (see Encoder).

Step 3: Configuring speeds

Speed configuration uses two layers, and the split is intentional: physical speeds describe what the motor and driver can do, while logical speeds describe what your specific dome needs given its mechanics (gearing, dome diameter, friction, desired real-world rotation speed, etc.).

Keeping them separate pays off in two situations:

• If you install the same motor/driver combination on more than one dome, you only need to re-tune the logical range for each one—the physical range stays the same.
• After a mechanical repair or adjustment to the dome, you typically only need to revisit the logical range too, since the motor and driver themselves have not changed.

Physical speeds

Physical speeds are the raw parameters the motor driver works with. Their units depend on the motor type (e.g. steps/s for a stepper or a PWM-related value for a DC driver). They should be set once per motor/driver combination and left alone afterward—they do not depend on the specific dome the motor is installed on:

• Min—the slowest speed the motor can turn without stalling. Below this, the motor may not move reliably.
• Max—the fastest safe speed for your drive system.
• Accel—how quickly the motor ramps up from min to max, in ms.

Your preset loads sensible defaults, only adjust these if you know your motor's characteristics and are seeing stalling or noise.

Each side has its own jog buttons (<< < Stop motor > >>) next to both the physical and logical speed fields, so you can test a speed immediately after applying it. Test with the motor disconnected from the dome or shutter mechanism first, so a wrong setting cannot drive it into a limit or cause damage.

Logical speeds

Logical speeds are what your ASCOM driver and automation software see, expressed as percentages of the physical range. This is the layer you tune to match the concrete mechanical installation: setting logical min to 20% and max to 80%, for example, limits the software-accessible range to the middle portion of the motor's capability, which is useful if extreme speeds cause vibration or inaccuracy on that particular dome. Expect to revisit this range whenever the dome's mechanics change (after a repair, a gear or belt adjustment, added friction, and so on) even though the physical range underneath stays the same.

Click Apply in each speed section to send the values to the board, then Save configuration to the board to persist them.

Step 4: enabling the shutter

If your dome has a shutter or flap controlled by a separate Caterpillar board, enable it in the Shutter section of Initial motor configuration and settings.

1. Check Enabled?. The shutter controls will become active.
2. Select the shutter motor preset from the Shutter preset dropdown.
3. If your shutter has two elements—a main opening and flaps (AKA lower shutters)—check Has flaps?. Note that the flap motor must be DC (motor or linear actuator), and flaps require their own open and close limit switches. There is currently nothing to configure for flaps.
4. Click Save configuration to the board.

On power on, both boards connect to each other over a private, internal Wi-Fi link—this is automatic and requires no configuration from you. The observatory computer must be connected to the rotation board, which can be done via USB or your own Wi-Fi network. The rotation board controls the shutter board; you do not need to address the shutter board separately from ASCOM. Similarly, the rotation board will automatically update the firmware of the shutter one when required.

Step 5: check motor directions

Use the jog buttons to move the rotator, and the shutter (if applicable). Look at whether or not they're moving in the direction the jog buttons indicate, if not, you'll need to swap the motor wirings.

Step 6: motor and encoder calibration

Calibration matches the encoder response to motor motion. Run it after initial setup, and after changing a motor or encoder.

1. Make sure the dome is clear to move through its full range of travel.
2. Click Perform motor/encoder calibration.
3. The dome will exercise the motor, both in CW and CCW direction, stopping, moving again, until the system measures every parameter it needs for accurate operation. Do not interrupt this process unless necessary.
4. On success, a confirmation dialog appears. Click Save configuration to the board immediately to preserve the calibration data.

Step 7: saving settings to the board

The green Save configuration to the board bar writes all current settings—speeds, WiFi configuration, calibration data, and motor parameters—to the board's internal flash (non-volatile) storage.

A confirmation dialog appears once the save completes. You can then close the application and proceed to ASCOM driver setup.

3.3. ASCOM dome driver

The Caterpillar's software includes the ASCOM dome driver and is available from this link. It has two components: the dome driver and a safety monitor driver for the optional weather input (a CloudWatcher can be used for this purpose).

The ASCOM Platform must be installed before running the Caterpillar installer. The software and drivers are the same for both the Caterpillar and the CaterpillarR.

Selecting the driver

In your astronomy software's dome chooser, select Caterpillar Dome from the list. Open the driver's Setup dialog to configure the connection before connecting for the first time.

Connect

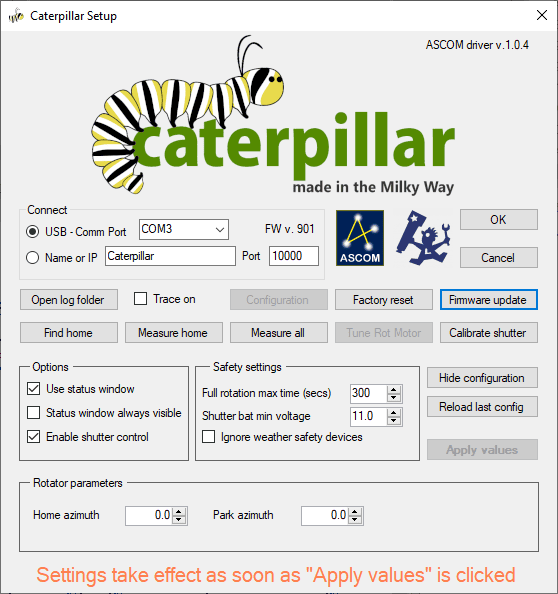

Enter the board's IP address (for WiFi) or select the COM port (for USB); the board communicates on UDP port 10000. The dialog also shows the connected board's firmware version (FW v.), and Firmware update lets you flash a new one without leaving the driver.

Open log folder and Trace on are diagnostic aids—enable tracing and reproduce an issue to be able to send the logs for support. Configuration / Hide configuration toggles the extended panel described below, and Factory reset resets the driver's own settings back to defaults.

Homing and calibration

These buttons perform the same kind of homing/calibration work as Motor and encoder calibration in Initial motor configuration and settings, but from the driver itself, without needing to reconnect with that tool:

The first time you visit the driver, run Measure all. You can also run Calibrate shutter.

Options

Safety settings

Rotator parameters

Home azimuth is the real-world azimuth, in degrees, that corresponds to the home sensor position; Park azimuth is where the dome should move to when parking.

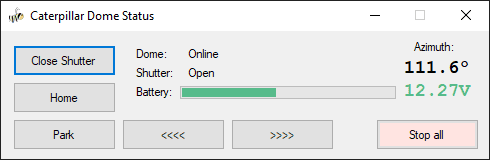

Status window

Checking Use status window opens a small floating window with live status and quick manual controls—handy for keeping an eye on the dome without opening your full automation software.

ASCOM Device Hub setup

ASCOM Device Hub lets multiple astronomy applications share a single dome driver connection, and handles telescope-dome slaving so the dome follows the telescope automatically.

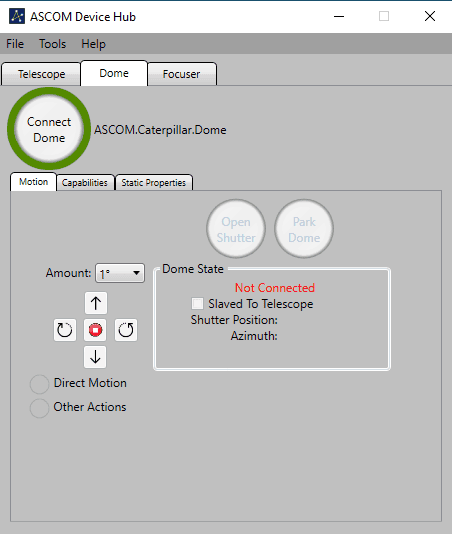

Connecting the dome driver

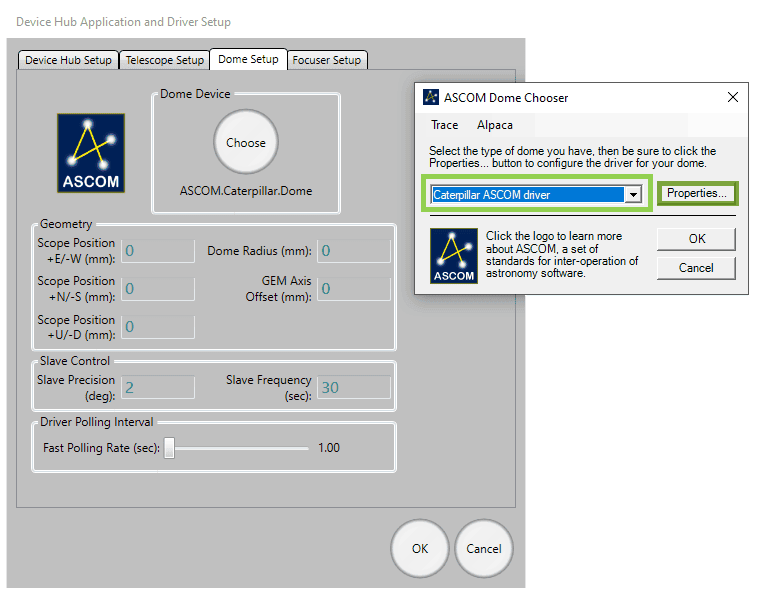

1. Open ASCOM Device Hub.
2. Go to Tools → Setup → Dome Setup.
3. Click Choose and select the Caterpillar ASCOM driver.
4. Click Connect.

Telescope slaving

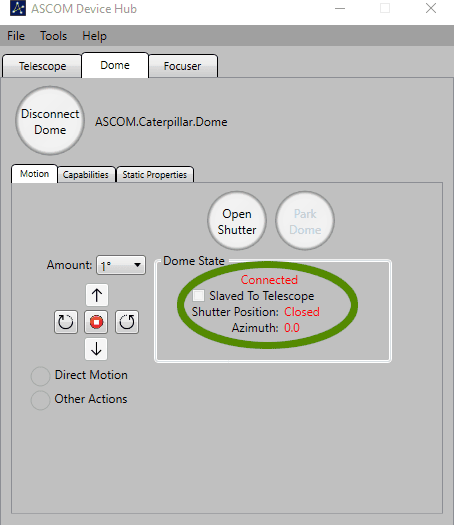

Configure the Telescope tab to connect to your mount's ASCOM driver, then enable slaving. Recommended parameters:

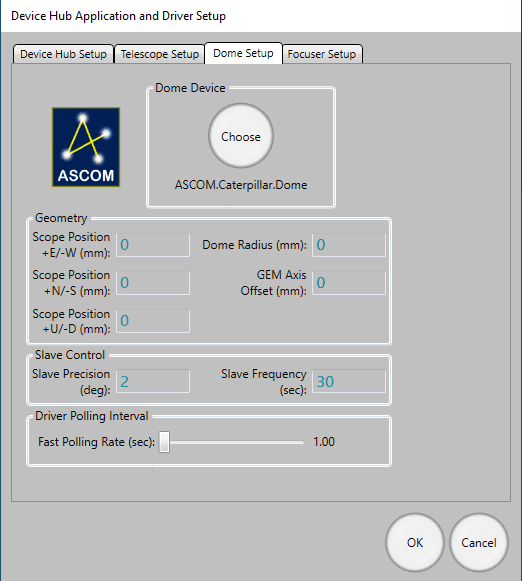

Dome geometry

For accurate slaving, you need to tell Device Hub the physical geometry of your dome and mount. Open Dome Setup → Geometry and enter:

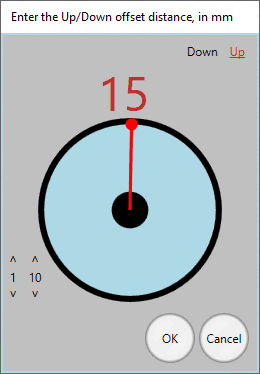

The N/S, E/W, and Up/Down parameters describe by how much the mount's optical axis intersection point is offset from the centre of rotation of the dome. The best way to measure these is often by taking differences—position the telescope at different azimuths, note the dome positions required, and back-calculate the offsets.

ASCOM Safety Monitor

The safety monitor driver is included in the same installer as the dome driver ( Caterpillar-Install.exe), and allows your automation software to close the observatory automatically when unsafe conditions are detected. It is fully compatible with the Lunaticoastro CloudWatcher and other monitors such as Hydreon's rain gauges.

3.4. INDI driver

A dedicated INDI driver is coming soon. In the meantime, the Caterpillar is fully compatible with the Nexdome Beaver INDI driver, which is included with the default drivers, and that one can be used.

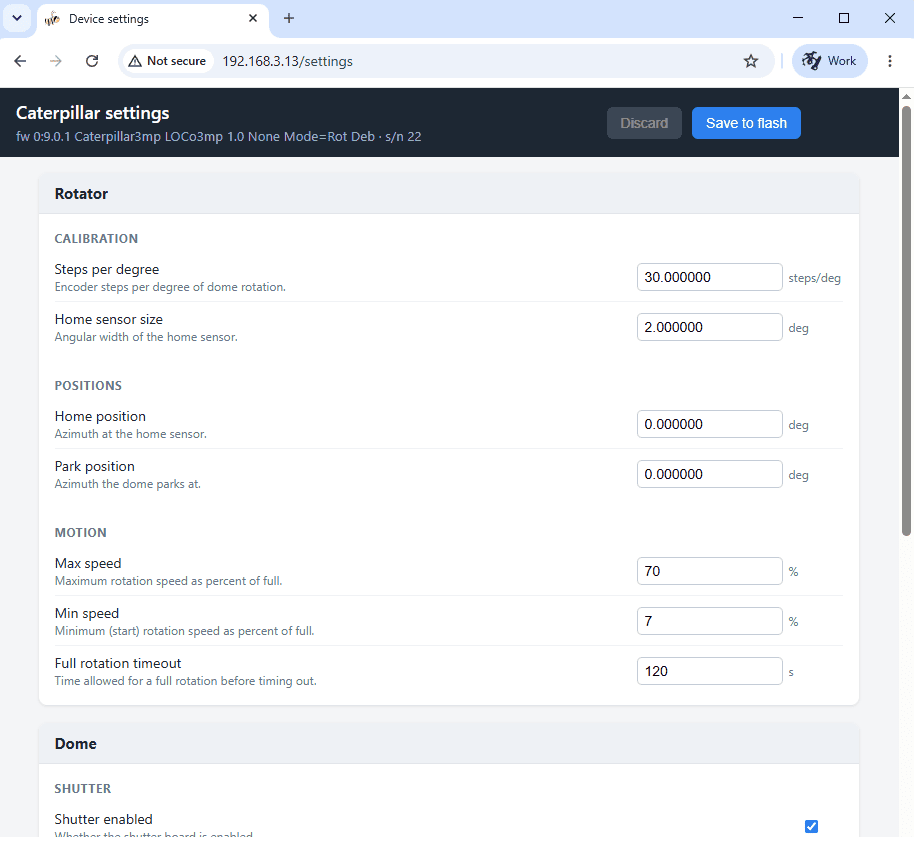

3.5. Configuration via internal webserver

Some settings of the Caterpillar can also be configured from its own internal webserver, accessed via its IP address, as in the screenshot below.

4. Troubleshooting

4.1. Connection issues

Board not appearing as a COM port

Install the CP210x driver: CP210x_Universal_Windows_Driver.zip. Try a different USB cable (some cables are charge-only and carry no data), and try a different USB port on your computer.

Connection drops unexpectedly

You should disable the power saving feature of the USB port. In Device Manager, find the CP210x device under Ports (COM & LPT), open its Properties → Power Management, and uncheck "Allow the computer to turn off this device to save power".

Cannot connect over WiFi

• Verify the IP address; check your router's DHCP table, or reconnect via USB to see the current address shown in Initial motor configuration and settings.
• Make sure the board and the PC are on the same network.
• Check that no firewall is blocking UDP port 10000.
• Confirm that Station mode is enabled and the board has successfully joined your network.

Shutter board not connecting

• The rotator↔shutter link is a private, internal Wi-Fi connection that pairs automatically—no network settings to check here. If it is not coming up, power-cycle both boards.
• Make sure both boards are powered and within range of each other.
• Initial motor configuration and settings waits up to 30 seconds for the shutter, be patient after connecting the rotator.

4.2. Unexpected stops

System stops with a warning during homing

Should the home sensor not be found after a complete revolution, the system will stop and issue a warning. Check:

• Home sensor wiring and connector.
• That the sensor is positioned to trigger as the dome passes. Test manually by activating the sensor while watching its indicator in the Sensors panel of Initial motor configuration and settings.
• For hall-effect sensors: confirm the magnet is close enough and correctly oriented.
• For mechanical sensors: check the plunger is not obstructed.

System stops with a warning during rotation

If the encoder does not detect motion when the dome is running, the system will stop. Check encoder wiring and connections, and verify the encoder is spinning when the dome moves.

4.3. Other issues

Calibration fails or aborts unexpectedly

• Check encoder wiring, a loose connection will cause no position feedback.
• Reduce the physical max speed in Initial motor configuration and settings and retry; the motor may be losing steps under load at high speed.
• Make sure the dome can complete a full unobstructed cycle during calibration.

Dome position drifts over time

• Re-run calibration, the encoder mapping may be stale after a motor or dome modification.
• Check that calibration data was saved to flash after the last successful calibration.

Dome not reaching target azimuth

• Check the logical speed range, if logical min is set too low, the derived motor speed may fall below physical min and the motor will not turn.
• If the motor runs but the dome barely moves, check the mechanical coupling.

5. Setups not covered here

If you believe your setup wasn’t covered by this manual, it’s still possible that the Caterpillar, whether it be this version or another one (check the Caterpillar’s page on our website), is the right controller for you. Just flick us an email at support@lunaticoastro.com with the details of your observatory and we’ll be happy to discuss automation with the Caterpillar or point you in the right direction.

Likewise, if you encounter any issues, we’re always here to help.
