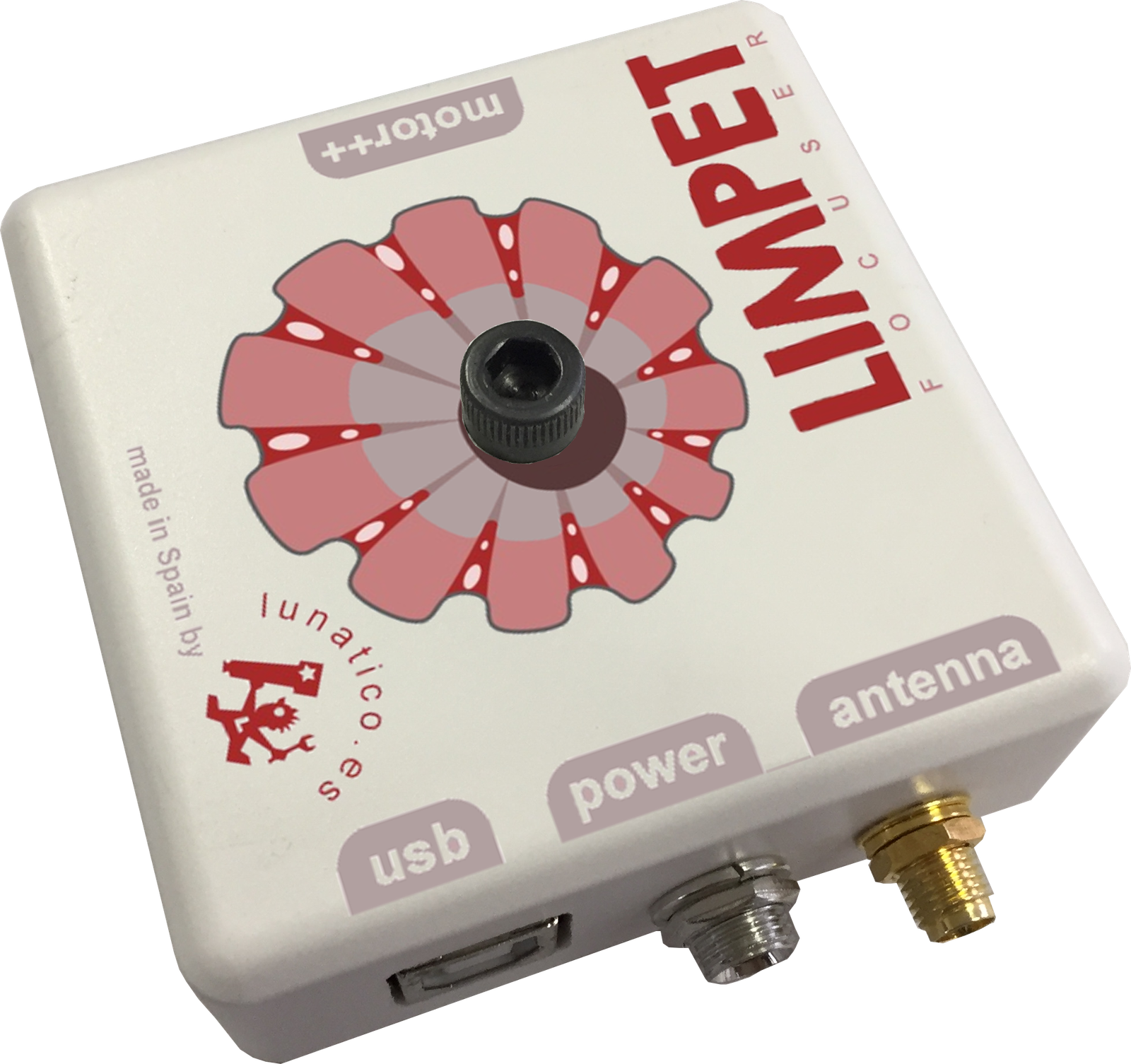

The Seletek controller with WIFI and USB connection.
1
WIFI & USB
Connect via Wifi, using Limpet’s internal access point or your observatory’s, or with an USB cable.
2
ASCOM and INDIlib
Control the focuser from any astronomy program (ASCOM and INDILib drivers available) or just from your smartphone. Or your computer’s web browser.
3
Focuser and more
Can alternatively control a camera rotator (with our Windows software).
Advantages:
- Focuser controller
- … from your astronomy program, your smartphone or your web browser
- Very small enclosure (70x70x26mm)
- Central hole to easily attach the limpet to the telescope using a single screw
- Wifi and USB connection
- Very low power requirements (30mA idle connected to wifi, 530mA focusing with our standard motor)
- Optional external temperature sensor
- Including a screw locking 2.1x 5.5mm jack for safe attachment of power cable
- 5.5 / 2.1mm standard jack, centre positive, 12V dc (13.8V as supplied by some batteries is valid)
- ASCOM and INDILib enabled
- focus from you smartphone via web interface (NEW!)

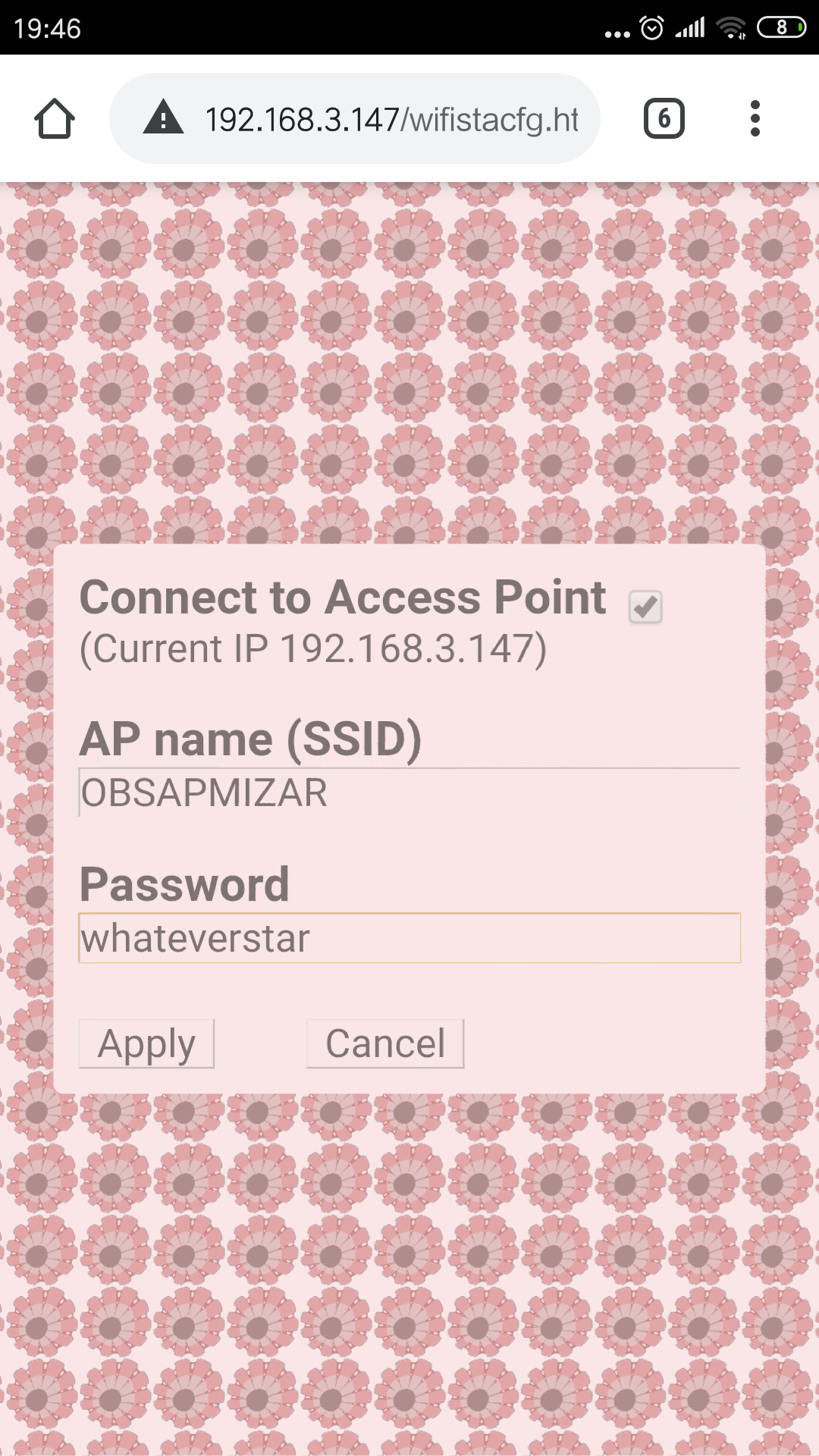

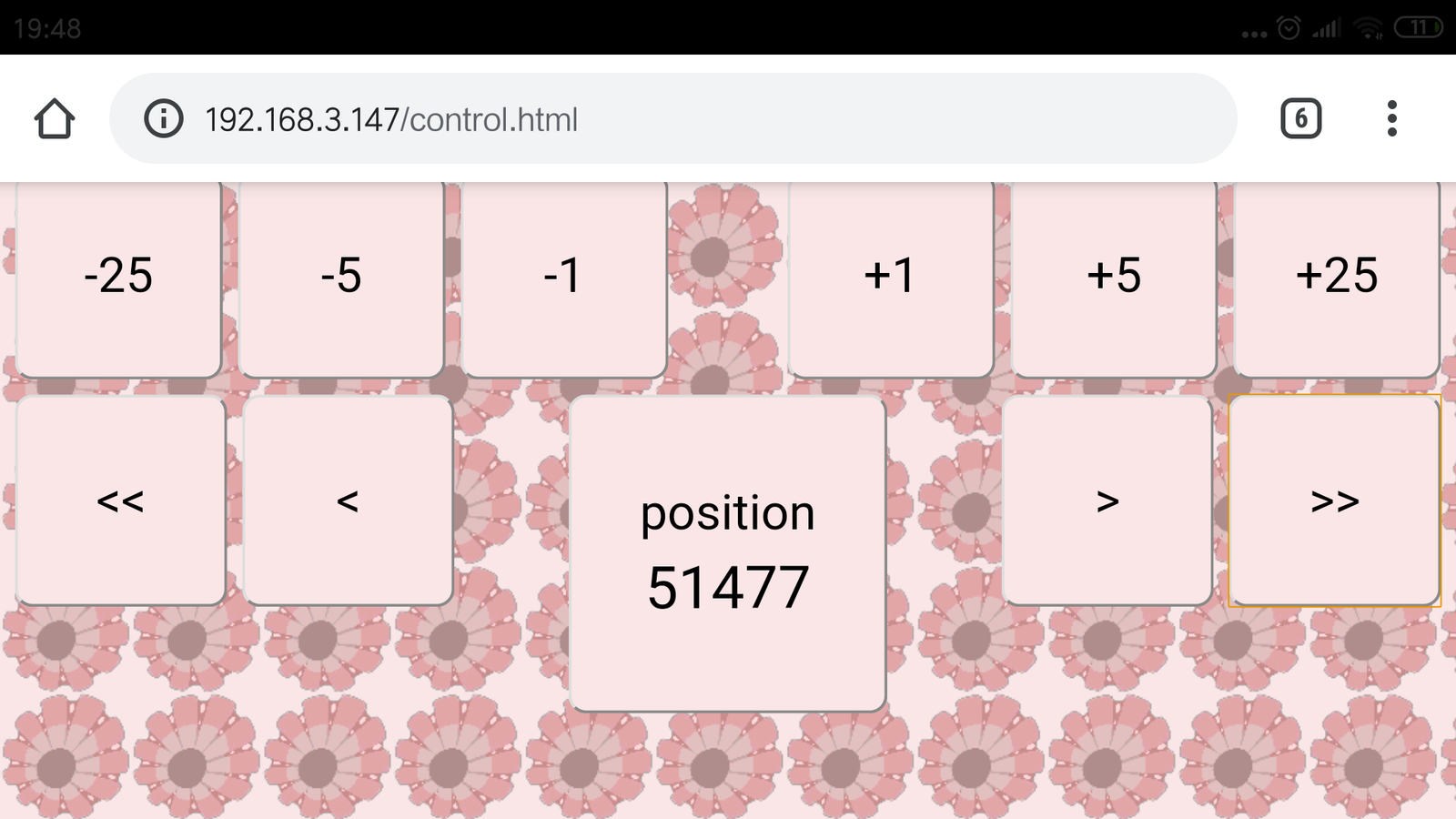

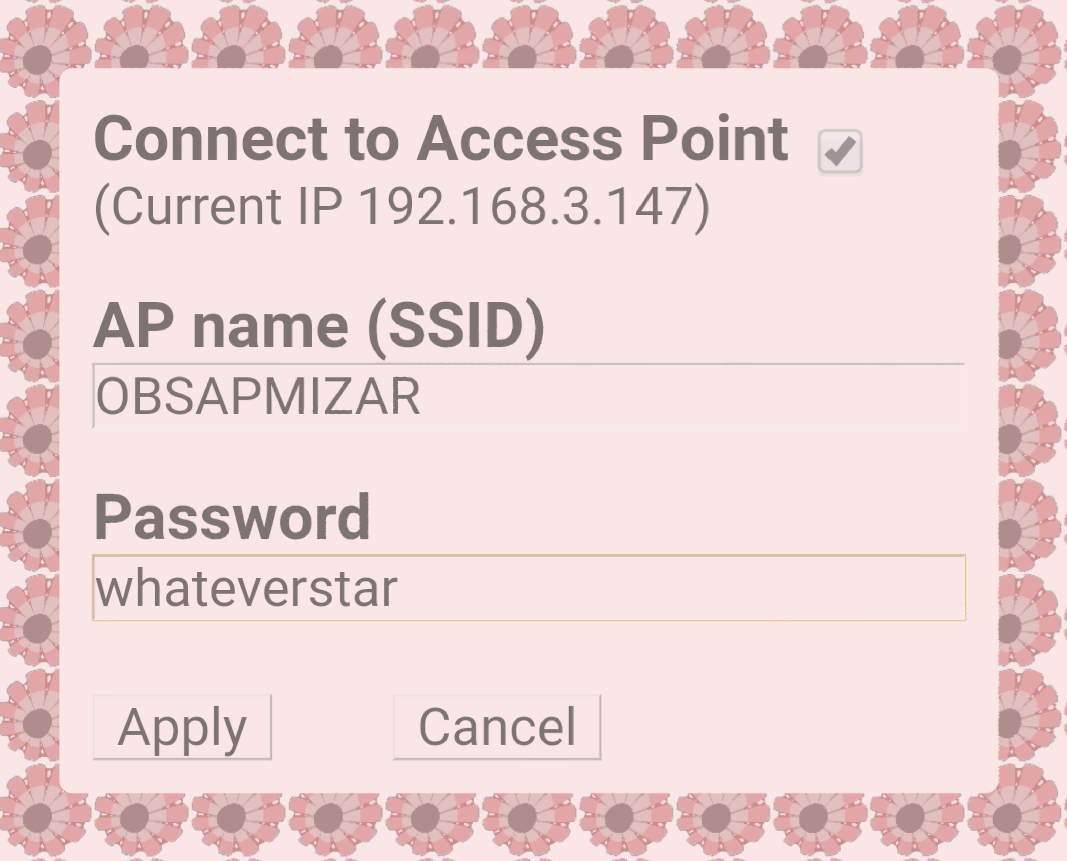

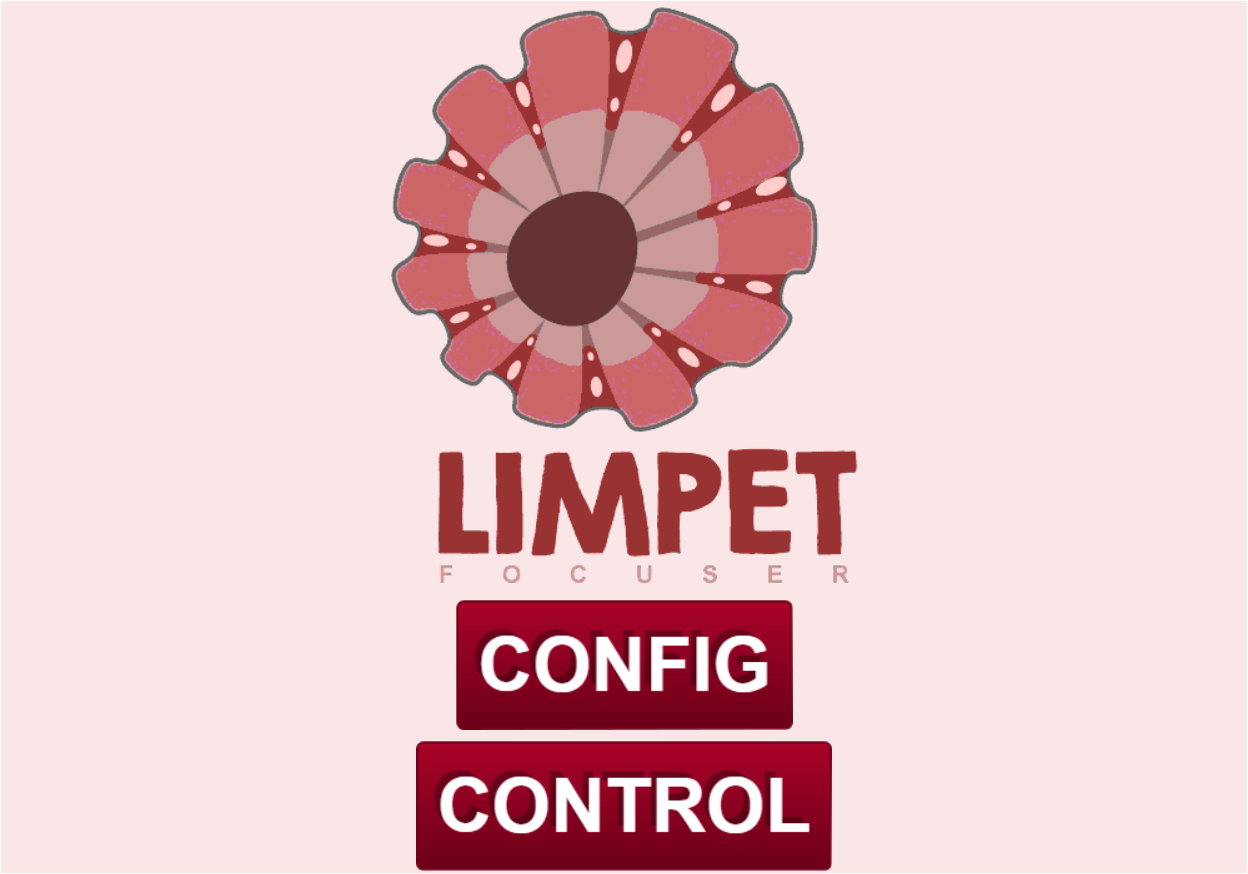

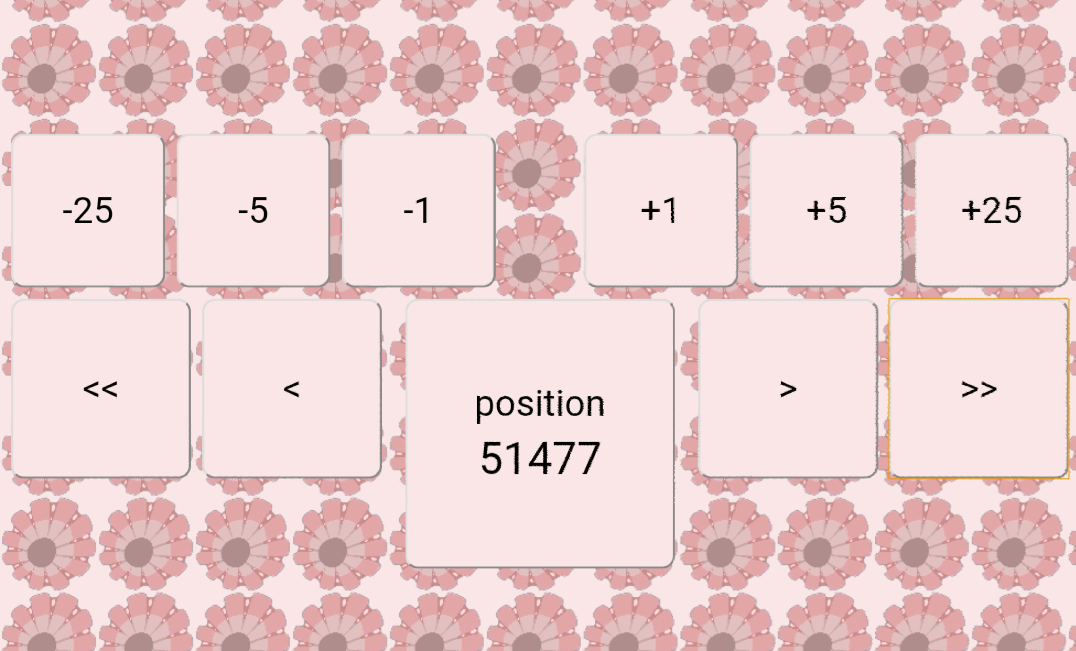

Seletek Limpet samples screens
Limpet Technical specifications
• Focuser controller
• Outputs: 4 power digital outputs (up to 1.5A) – thermal autoshutdown of the drivers in case of overheating.
• Inputs: 3 analogical-digital inputs (1 for the temperature external sensor, 2 protected with resettable fuses)
• PC connection via USB and Wifi
• Size: 70 * 70 * 26 mm
• Weight: <85 gr.
• External power supply 12V dc (13.8V as supplied by some batteries is valid)
• The Windows software supports any current version (XP, Vista, 7, 10, 32bit, 64bit)
• ASCOM compliant software (focuser & rotator)
• INDIlib focuser driver
• Will work with FocusMax, MaximDL, CCDCommander, ACP, CCD AutoPilot, SGPro, Voyager, APT… and any ASCOM aware astronomy software
